meetsensor distributes the full range of products including the Swiss E+H Endress+Hauser temperature transmitter iTEMP TMT82 HART® 7 series, ensuring new and original products. We can provide product model pictures, parameters, technical data and official information.

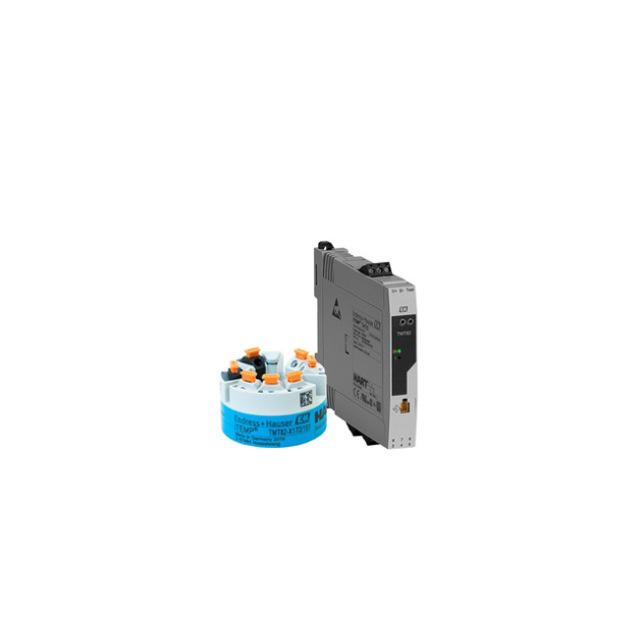

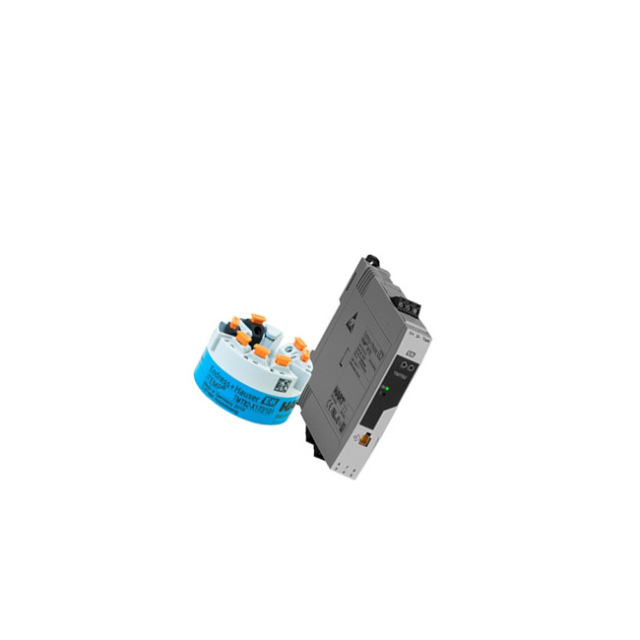

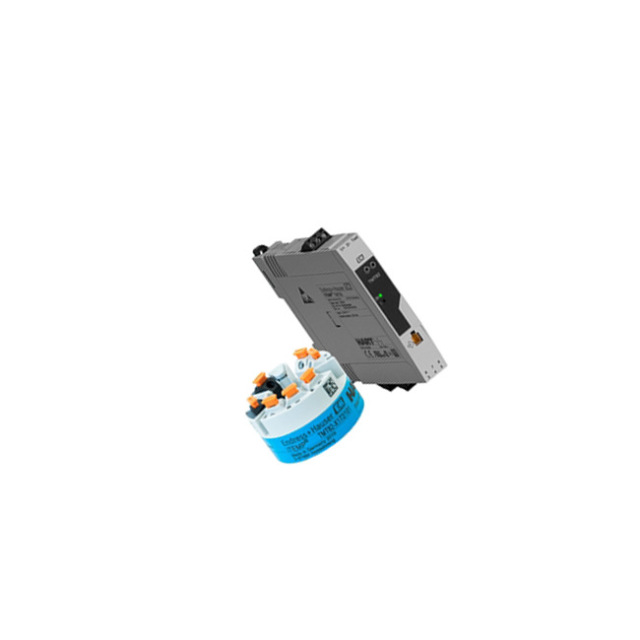

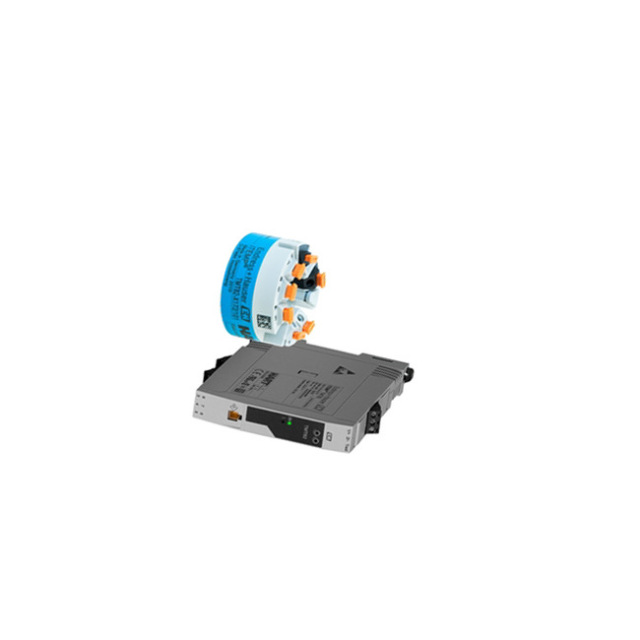

Switzerland E+H Temperature Transmitter iTEMP TMT82 HART® 7 series TMT82-AAA2AA1A3AAA1 Product Details:
T iTEMP TMT82 HART® 7 Temperature Transmission
Dual chamber temperature transmitter, SIL certified, for use in hazardous areas
Product Specifications
measurement accuracy:
(K type) <= 0.5 K
(Type K) <=0.9 °F
Application Areas
The iTEMP TMT82 temperature transmitter has high reliability, high measurement accuracy and high long-term stability, meeting the high availability requirements of industrial processes.
The dual-channel transmitter is widely used to reliably convert the input signal of universal sensors such as thermocouples or RTD into 4...20 mA output signal and HART® signal. Equipped with intelligent sensor self-monitoring function and output diagnostic status information in accordance with NAMUR NE 107 standard, the SIL 2 and SIL3 certified transmitter effectively improves process safety and extends uptime.
l Passed FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL and other international certifications, can work safely in hazardous areas
l Dual universal input: RTD, thermocouple, resistance and voltage signals; using HART® 7 communication protocol
l Meet the requirements of ship classification certification
l Installed in explosion-proof field housing
IP68 protection level
l Installed in a flat head in accordance with DIN EN 50446
l Cabinet installation or DIN rail mounting; width 17.5 mm
Advantage
The temperature transmitter is rugged and durable, outputs high measurement accuracy and high long-term stability, ensuring high plant availability
l SIL certified, functional safety level up to SIL2, SIL3, in compliance with IEC 61508:2010 standard
l Various installation methods and housing types: B-type junction box, DIN rail, field housing with independent wiring cavity, built-in display unit (TID10), polyester coating, polyurethane coating, stainless steel housing optional
l Equipped with transmitter-sensor matching function to achieve high measurement accuracy
l Equipped with sensor and hardware fault detection functions; diagnostic status information complies with NAMUR NE 107 standards
l Time-saving installation: Direct push terminal blocks are used, and wiring operations can be completed without the help of other tools
Temperature measurement - -Thermometers and transmitters for process industry
Endress+Hauser offers a wide range of integrated thermometers, modular thermometers, temperature sleeves, measuring cores, transmitters and accessories for process industry measurements such as oil and gas, chemicals, food & beverages, life sciences, building materials & metallurgy, power & energy, etc.
Advantage
l Highest plant availability through the most reliable sensor technology and traceable, accredited calibration.
Save costs and optimize processes with fast, robust and highly accurate iTHERM sensors.
l It can realize seamless integration, simple operation, long service life and low operating cost.
l Passed the international trouble-free device certification
l User-friendly interface and expert support services throughout the entire life cycle.
