Meetsensor distributes the full range of products including the single light guide series of the German MENTOR light guide system, ensuring that they are brand new, original and authentic. We can provide product model pictures, parameters, technical data and official information.

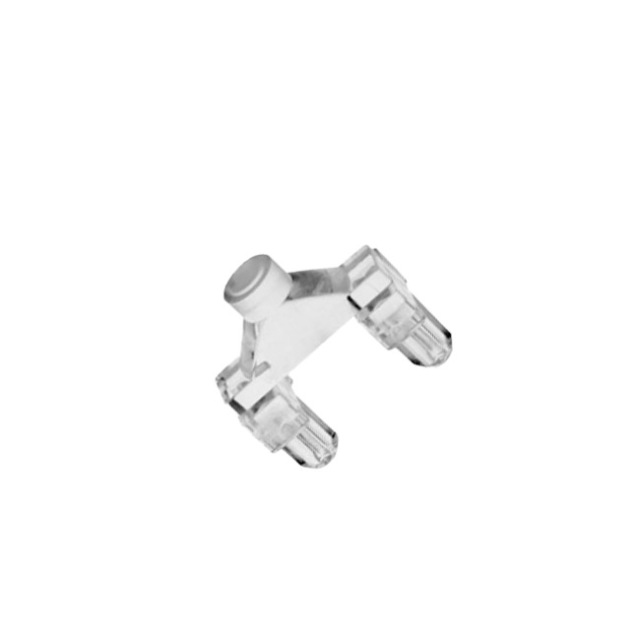

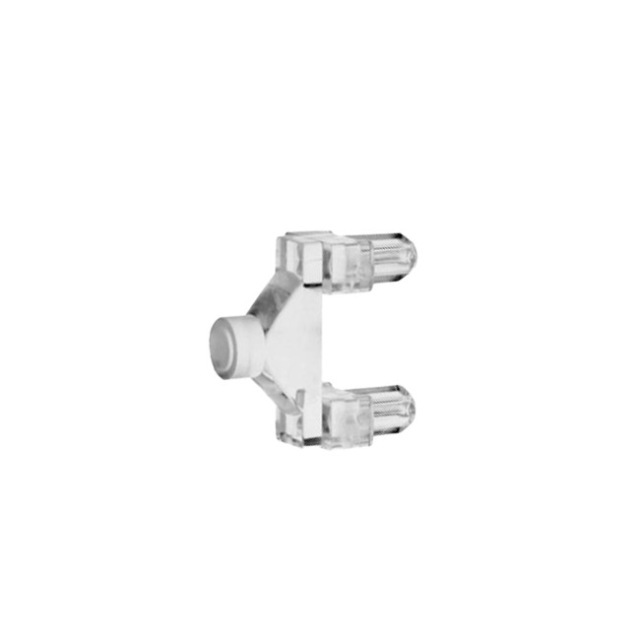

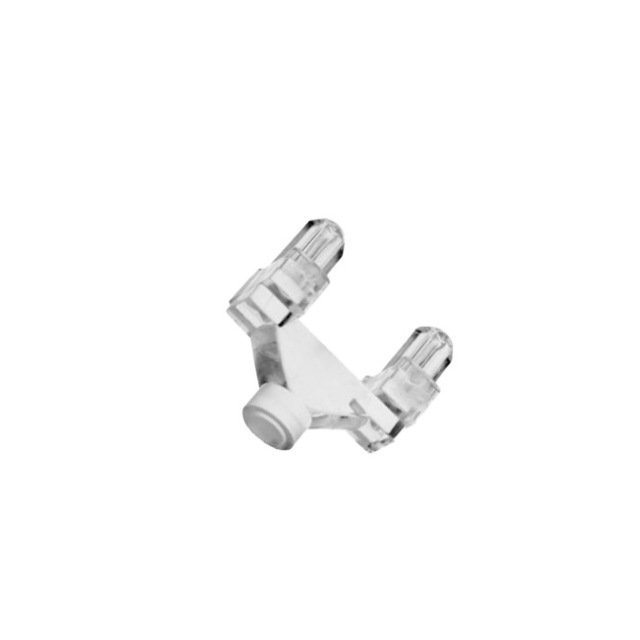

Germany MENTOR Light guide system 1281.1001 Product Details:
1281.1001 Single light guide plate PCB; plane; round; round; D = 3; L = 5
Type: Single light guide plate; Mounting: PCB; Head shape: Round; Head shape: Flat; Head size (mm): 3; Length (mm): 5
M ENTOR components
Our component portfolio includes a wide range of light guide systems, keyboard components, optoelectronic and electromechanical components, as well as control knobs and housing handles. We offer more than 2,500 standard products, many of which are available from stock with low minimum quantities and short delivery times. In addition, we offer a wide range of individual design options based on customer requirements.
lLight guide systems for SMD and THT LEDs
Optoelectronic components
Keyboard components and accessories
lElectromechanical components SMD/THT
lHandle, housing and cabinet accessories
lPlastic/Metal Knobs/Mechanical Parts
Light guides made by experts
Modern light guides are used to transfer light signals from circuit board mounted LEDs over a specific route to a defined light emitting surface with minimal losses and blurring effects. They offer electronics developers a cost-effective, space-saving and easy-to-install solution with high ESD protection. The MENTOR range of high-quality standard light guides for assembly on front panels or circuit boards consists of hundreds of items that can be supplied from stock with small minimum quantities and short delivery times. It is therefore undoubtedly one of the largest light guide product ranges in the world.
Efficient precision optics
MENTOR's premium light guides are highly efficient precision optical products. As experts in optoelectronics, precision lighting modules and innovative light control systems, we develop and produce light guides of the highest quality. Our lighting experts set the standards with their expertise and advanced development and simulation programs. Easy-to-install, frost-free solutions with very high luminous efficacy and perfectly homogeneous illumination are manufactured from long-life, high-performance plastics on advanced injection molding machines.
Wide product range
MENTOR offers you a wide range of light guides in various versions for every application. It includes front panel mounting solutions as well as vertical or horizontal circuit board mounting versions, single or multiple light guides, bar graph displays, different head shapes, various sizes - including miniature versions and flexible light guide systems.
multiple choices
MENTOR offers a wide variety of front panel light guides. Single and multi-light guides are available. In addition to the classic diameters (5.2 or 5.0 mm and 3.2 mm), a miniature version with Ø2.2 mm is also available. IP68 rating All versions are available in a variety of different lengths.
integrated
The different product options offer a wide range of assembly freedom. Front-mounted light guides are standard and available in a variety of versions. They are available as an option with straight or diagonal injection faces, allowing for horizontal or vertical assembly. The advantages of the versions assembled from the rear of the front panel are a homogeneous light pattern and flush mounting.
design
Since light guides always work outwards from the interface, they influence the design of the device. Here, light guides with rounded beam surfaces and spherical, flat or countersunk heads offer many aesthetic options, as do versions with square heads. Excellent light patterns always ensure high-quality visualization.
Customized solutions are our strength
The MENTOR series of high-quality standard light guides offers a wide range of solutions. It includes front panel mounting solutions, as well as vertical or horizontal circuit board mounting versions, single and multiple light guides, bar graph displays, different head shapes, various sizes including miniature versions and flexible light guide systems.
Despite this wide range of standard products, there are still situations where a custom solution for a light guide represents the best solution. This is the case, for example, if a very individual radiation effect is required or if a particularly large amount of time and effort is required to adapt a circuit board or device front to a standard light guide.
We know from many years of experience that individual length adjustments are often necessary to adapt standard light guides to individual requirements. Intelligent tooling strategies enable us to implement these solutions for our customers with no or minimal tooling costs and low minimum order quantities.
We have designated light guides that can realize custom lengths within the specified length variation (dimension A) with no or minimal tooling costs, symbol C+. The advantage here is the exceptional cost-effectiveness of these solutions. We designate solutions where this possibility does not exist but with a variety of tool-related special versions, symbol C.
Light guide plate version
Front panel light guide plate
lHorizontal light guide plate - for mounting on circuit boards
lVertical light guide plate - for mounting on circuit boards
lFlexible light guide plate
lSquare light guide plate
lM-CUT 2D Light Guide System
Founded in 1920, MENTOR has been a financially independent, owner-managed family business for over 100 years.
The keys to all MENTOR's actions from the beginning to the present day: attention to quality, commitment to innovative technologies and a unique approach we call MENTORING. These three constants are embedded in MENTOR's brand DNA, which is symbolized in the three wings of the brand logo.
Lighting, especially product-integrated lighting, is MENTOR's specialty. This is where MENTOR's many years of knowledge, cutting-edge technology and an interdisciplinary team of highly qualified professionals come into play. Lighting solutions and components currently account for three quarters of MENTOR's sales. MENTOR firmly believes that lighting is very important for the design of successful products and tries and explores the combination of lighting with aesthetics and emotional rendering.
MENTOR's product and service portfolio includes LED-based lighting systems for ambient and functional lighting as well as advanced control and display elements for housing fronts and other mechanical, electronic and optoelectronic HMI components. While in the early days of the company's development the focus was more on individual components, today MENTOR's product portfolio is increasingly oriented towards complete systems and subsystems, which are often developed and implemented as custom solutions.
