Meetsensor distributes a full range of American OTTOP9 dome style, sealed, momentary action push button switches, etc., guaranteeing new and original authentic products, and can provide product model pictures, parameters, technical data and official information.

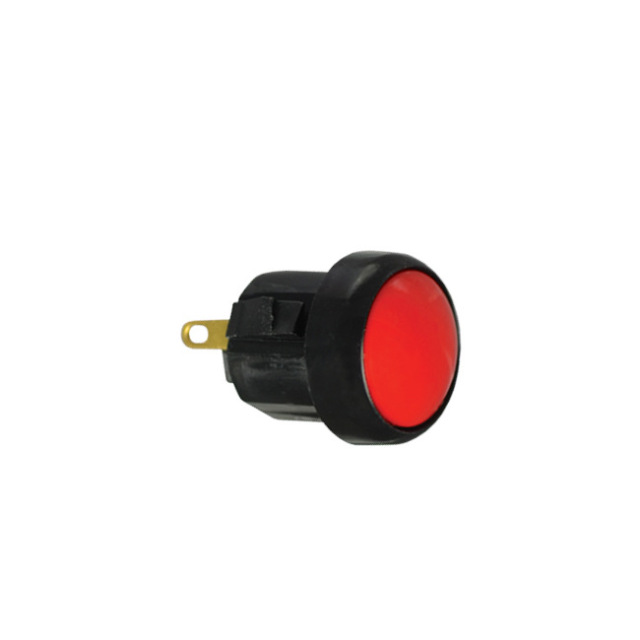

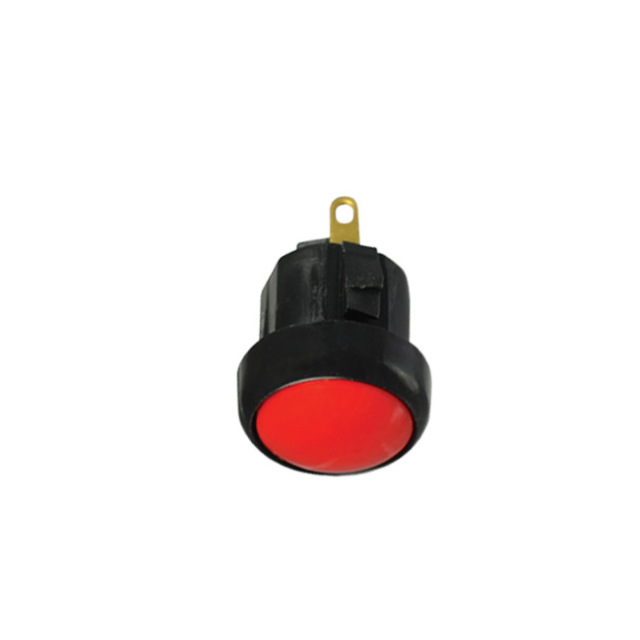

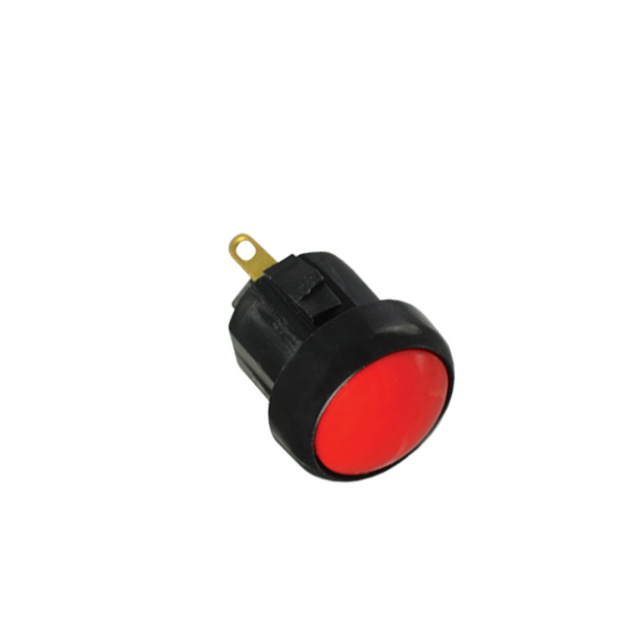

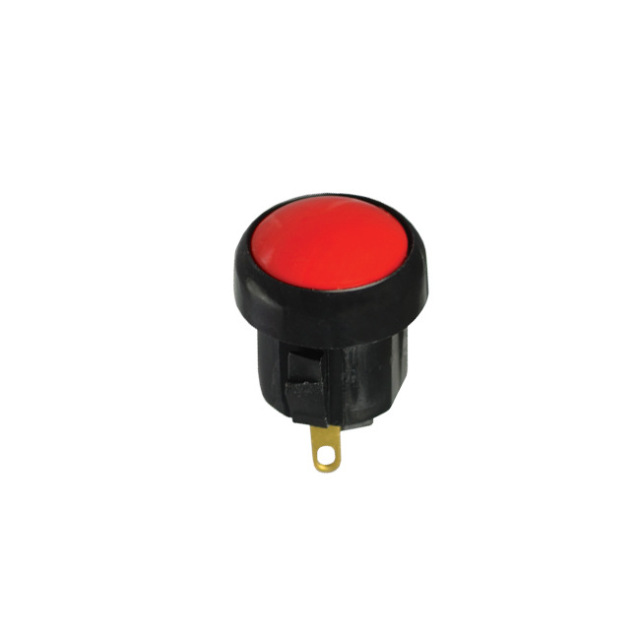

American TTO Push button switch P9-213121 Product Details:
The P9 dome switch features a profiled dome-style pushbutton with similar dimensions and features to the P7-D series. There are two pushbutton versions: flush pushbutton profile and raised pushbutton profile, and two bezel versions: standard and small.
The P9 is available with either a threaded housing or snap-in housing for hex nut mounting. This switch series features a short panel depth and provides excellent mechanical and electrical performance while operating in harsh conditions.
The P9 Dome Series is sealed to protect against dust and moisture. The mechanical life is 10,000 operations and the electrical life is 25,25 operations at full rated load.
Waterproof sealing to IP000S and IP68K is available by simply adding a “W” suffix to the part number.
The P69 Dome Camera Series offers standard and low force double break snap actions. All are momentary action. Special contact variations available. High contact pressure and unique contact design provide low contact resistance for logic level switching capability and full rated service. Solder, PC pin and 9.0" quick connect termination options are also available. Positive tactile feedback signals the operator when the switch is actuated.
The P110 Dome Series is a high quality precision switch designed for use in panels, control handles, computers, instruments, heavy equipment and other demanding applications where an attractive, rugged push button switch is required.
feature
lFlush and raised dome button styles, glossy or matte finishes
Small border options
l Mechanical life is 10,000 cycles
l Double break or short circuit bar, instantaneous action
lFull plastic shell and button structure
Threaded body or snap-in panel mounting
Withstands extreme shock and vibration
lPositive tactile feedback contact transfer on fast-action models
Solder, PC pin and 0.110" quick connect terminal styles
l Moisture and dust proof up to IP64 or waterproof up to IP68S and IP69K
UL certification
lRoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
