meetsensor distributes German SICK Inductive Proximity Sensors The entire series of products including the IME18 series are guaranteed to be brand new, original and authentic, and we can provide product model pictures, parameters, technical data and official information.

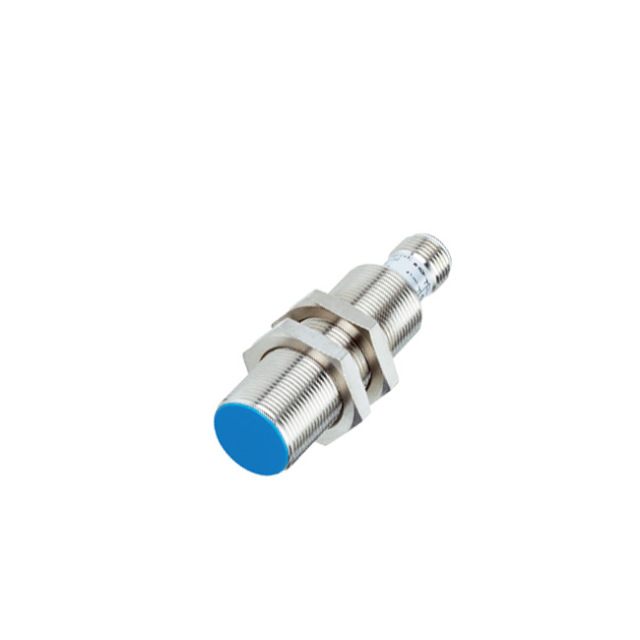

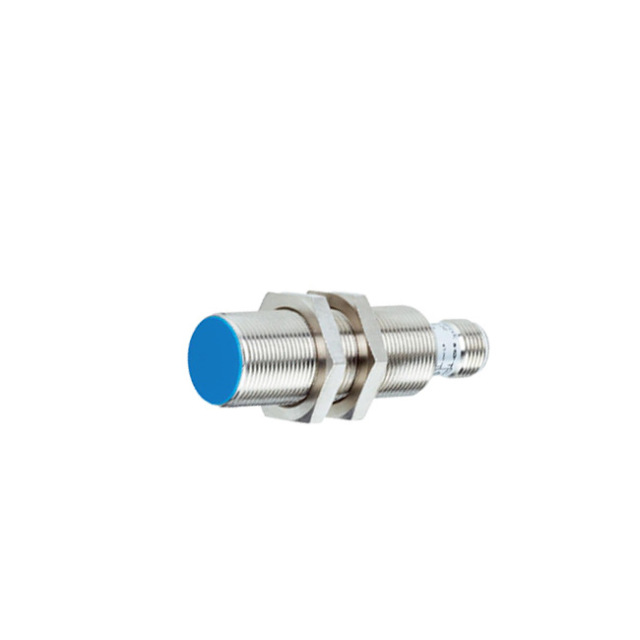

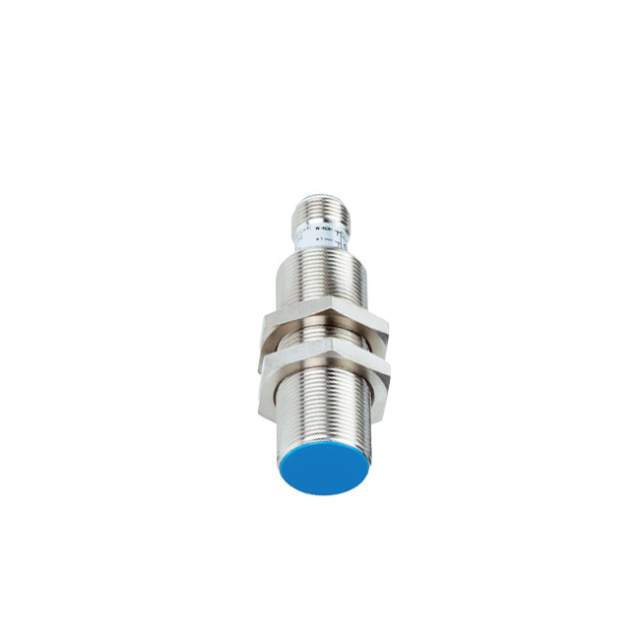

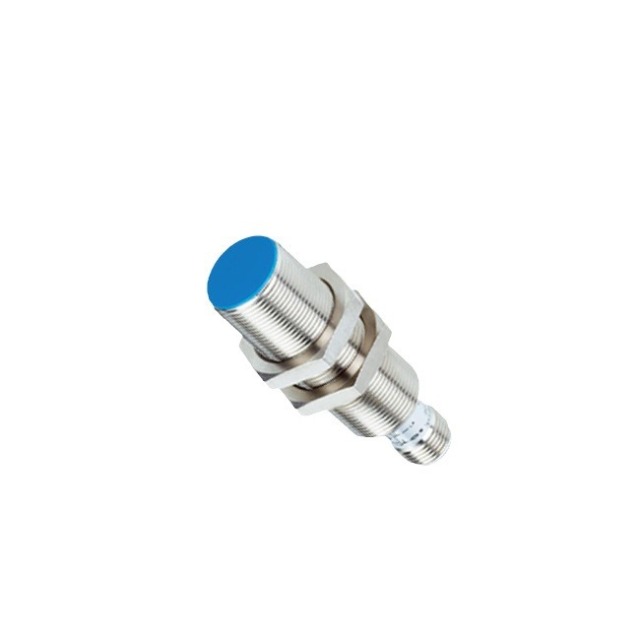

Germany SICK Inductive Proximity Sensors IM18-08NPS-ZC1 Product Details :
S ICK Inductive Proximity Sensors
IME is a cost-effective standard component suitable for industrial environments
Precision, high availability and long service life are very important indicators for inductive sensors. The inductive sensors IME use high technology in narrow space applications. The integrated ASIC chip realizes digital adjustment after an independent manufacturing process. The data storage in the ASIC ensures accurate switching points and ultra-high value repeatability, covering all product batches. Inside the housing, the innovative "hot melt casting" ensures very high shock and vibration resistance. For the user, it realizes high positioning accuracy inside the machine and reliable and stable operation of the sensor.
Choose your type
Inductive Proximity Sensors IMS series-- Rugged sensors for mobile machinery
The inductive proximity sensors IMS combine the tried-and-tested, robust SICK mechanics with advanced electronics. With their E1 type approval from the German Federal Motor Transport Authority, the sensors are particularly suitable for use in mobile machinery. The IMS products feature load dump protection, electromagnetic compatibility and a large voltage range of 7.2 V to 60 V DC. The versions with connecting cables offer sufficient support for the mobile male connector, as these are made of oil-resistant material and have a cross-section of 0.5 mm². The ambient temperature range is from –40 °C to +100 °C, so that the sensor functions in any weather.
Your benefits
l Rugged sensor technology enables maximum uptime, even in harsh environments with adverse weather conditions
Stable and trouble-free process through high electromagnetic compatibility and very precise detection
l Broad product portfolio with special variants for specific applications
Global availability through the global SICK sales network and numerous certifications
feature
Thread size: M12 to M30
lLarge trigger sensing range: 4 mm to 20 mm
lElectrical configuration: DC, 3-wire
l Shell protection grade: IP68, IP69K
lAmbient temperature: –40 °C to +100 °C
lSturdy stainless steel housing; plastic sensing face
l Load dump protection and high electromagnetic compatibility of 100 V/m
lE1 type certification
Advantage
Can be used in any weather , Maximum machine operating time
Mobile machines can be used in all weather conditions. Shocks and vibrations as well as rain, snow, frost, dirt, oil residue, cold or heat can severely affect sensors installed in the machine. Other factors are aggressive machine cleaning processes. IMF inductive proximity sensors overcome these challenges with their compact and robust design. IP68 and IP69K housing ratings, high shock and vibration resistance as well as a wide range of specification limits provide your machine with maximum uptime.
High-precision process, high throughput . Stable and trouble-free processes: The more stable and trouble-free the process, the higher the throughput .
The inductive proximity sensors IMS are highly compatible with electromagnetic faults up to 100 V/m and can therefore even withstand pulses from motor vehicle electrical systems without difficulty. This compatibility, combined with high-precision SICK ASIC technology, ensures optimal functionality of mobile machines.
IMS sensors are available in specific variants covering a wide range of relevant industry applications.
SICK's inductive proximity sensors IMS cover a wide range of relevant industry applications. Even in the case of special customer requirements, SICK can provide fast and simple customized sensor solutions.
Similar models:
IME18-12NPSVW2S Part no.: 1065020 IME18-12BPSZQ9KS24 Part no.: 1081179 IME18-05BPPZC0K Part no.: 1092476 IME18-12NDSZY2S Part no.: 1068261 IME18-08BPPZWDSS21 Part no.: 1067897 IME18-05BPPZC0S Part no.: 1046743 IME18-08NNOZC0S Part no.: 1040962 IME18-12NDSZC0S Part no.: 1067181 IME18-08NPPZC0S Part no.: 1046894 IME18-12NPSZW2K Part no.: 1040983 IME18-08NPSZW5K Part no.: 1042723 IME18-12NPOZW2K Part no.: 1040987 IME18-05BNOZC0K Part no.: 1040945 IME18-12NNSZC0S Part no.: 1040990 IME18-08BNSZW3K Part no.: 1054020 IME18-08NNSZC0K Part no.: 1040957 IME18-08NPOZW2K Part no.: 1040955 IME18-05BNSZW2K Part no.: 1040943 IME18-08BNOZW2K Part no.: 1040979 IME18-08BPOZW2K Part no.: 1040971 IME18-12BNSZW2S Part no.: 1071258 IME18-08NPOZC0S Part no.: 1040954 IME18- 05BPSZW5S Part no.: 1046725 IME18-20NPPZC0K Part no.: 1096266 IME18-20NPSZW5K Part no.: 1101098 IME18-12BNSZC0K Part no.: 1071254 IME18-08BPOZQ9K Part no.: 1084644 IME18-08BDOZC0S Part no.: 1067206 IME18-08NPOZC0K Part no.: 1040953 IME18-20NPSZW2K Part no.: 1071264 IME18-08BPSZQ9KS25 Part no.: 1081180 IME18-12BNOZC0K Part no.: 1071255 IME18-08BPSZC0SP03 Part no.: 1054701 IME18-12BNOZC0S Part no.: 1071263 IME18-12BPOZC0S Part no.: 1071261 IME18-08BPSZC0SS11 Part no.: 1051972 IME18-12BNSZW2K Part no.: 1071248 IME18-12BPOZW2S Part no.: 1071257
