Shenzhen Baoxin Micro Technology Co., Ltd. imports and distributes a full range of American OTTO P4 - momentary action, two-step, custom push button switches and other products. We guarantee new and original products and can provide product model pictures, parameters, technical data and official information.

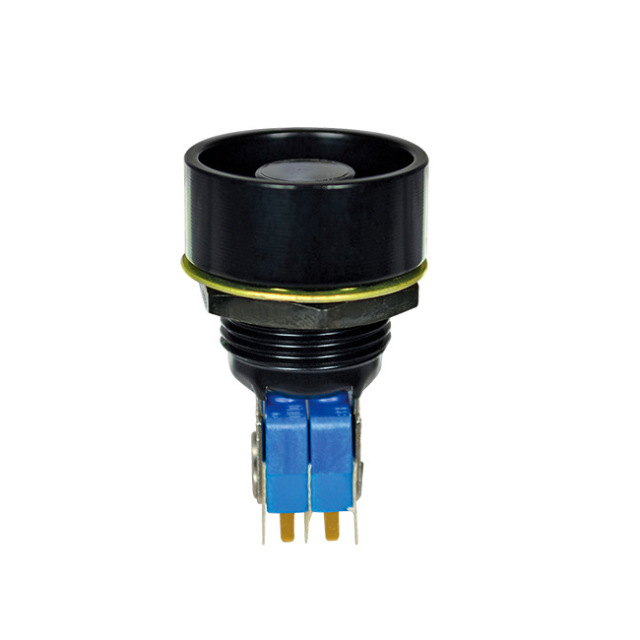

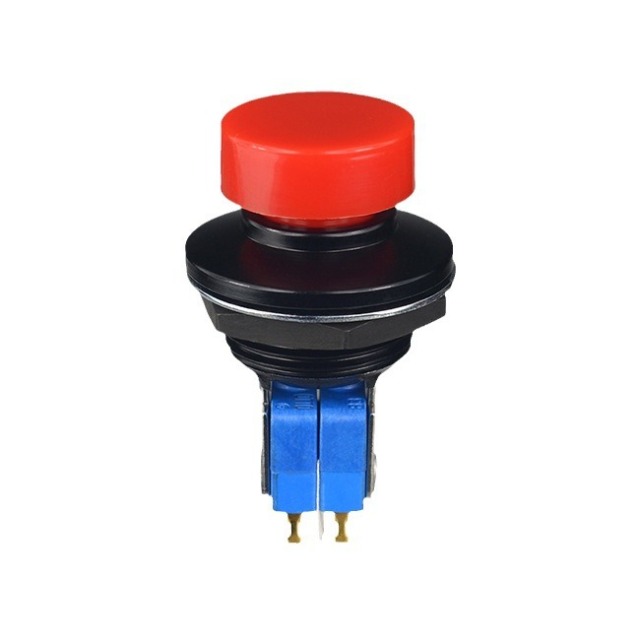

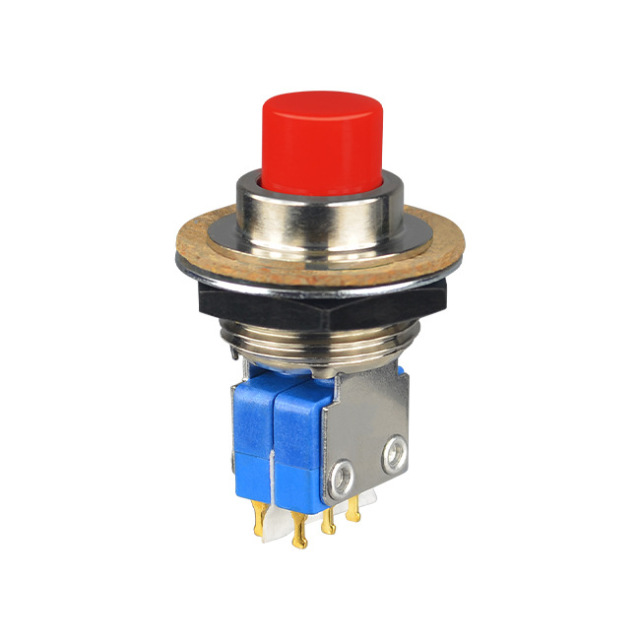

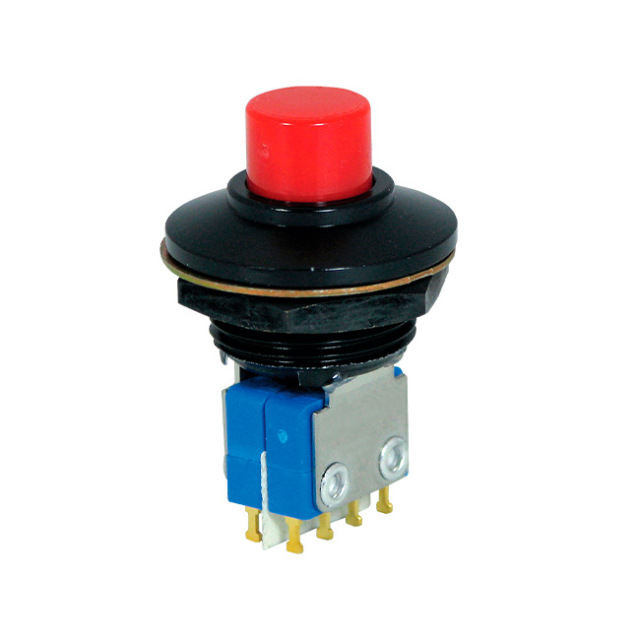

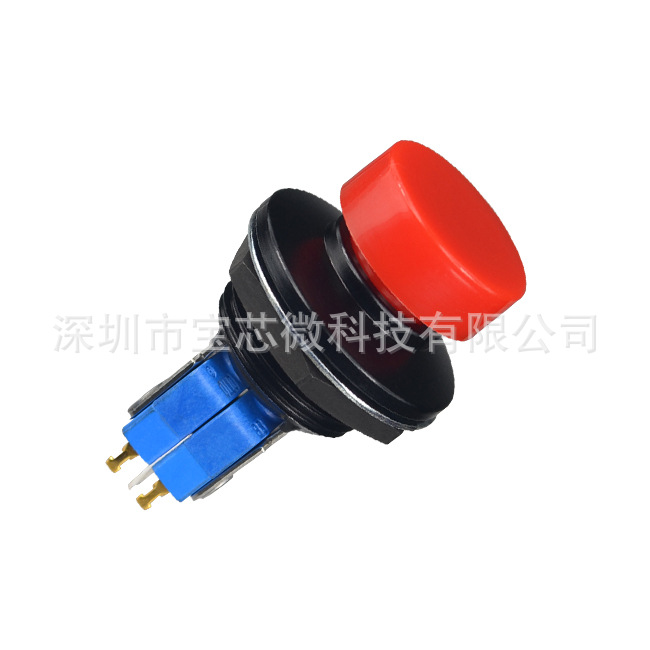

American TTO Otto Push button switch P4-10214 Product Details:
Sturdy sealed panel
These rugged sealed aluminum push button actuators are anodized and available in a variety of colors. Available in a variety of colors. Available in single and double pole models. O-rings provide panel sealing to protect against water and dust. water and dust of the switch.
Operating force:
1-pole: 2.5 lbs max
2-pole 4.0 lbs max

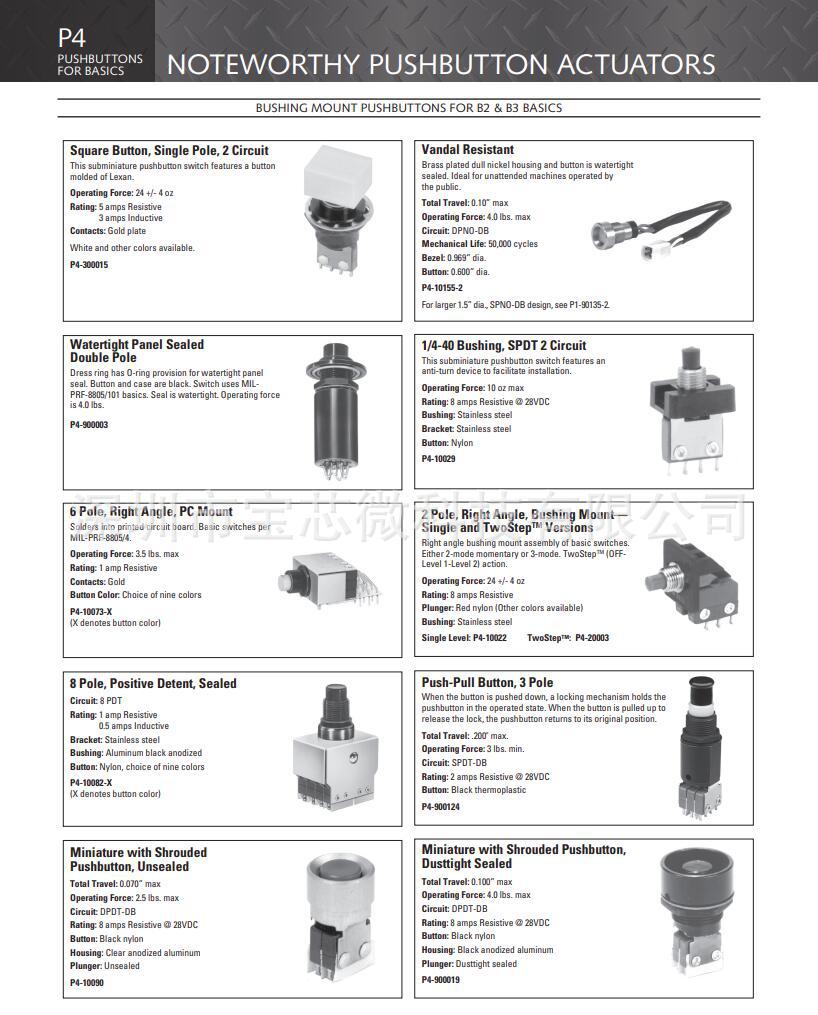

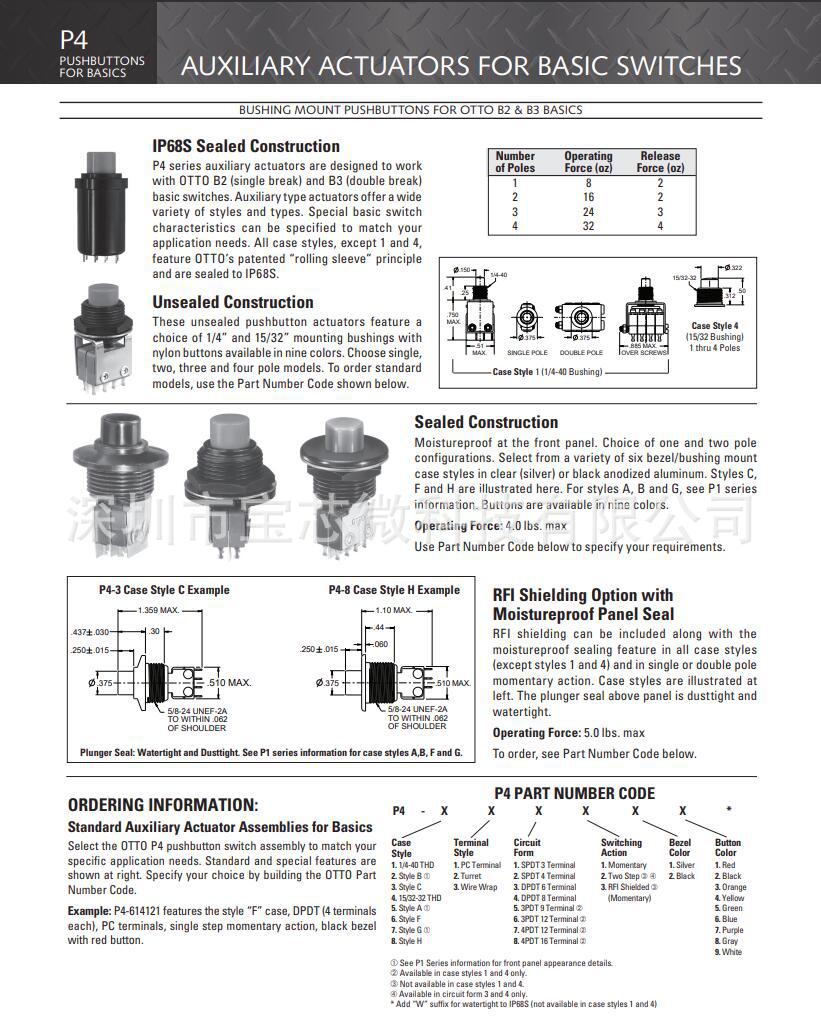

The P4 Series Auxiliary Actuators are designed for use with OTTO B2 (single break) and B3 (double break) basic switches. Auxiliary actuators are available in a variety of styles and types. Special basic switch characteristics can be specified to meet your application requirements. All case styles except 1 and 4 use OTTO's patented "rolling sleeve" principle and are sealed to IP68S.
Non-sealed structure
These unsealed push button actuators feature 1/4" and 15/32" mounting bushing options and nylon push buttons in nine color options. Choose from single, double, three and four pole models. To order standard models, use the part number code shown below.
Sealed structure
Front panel is moisture resistant. Available in single and double pole configurations. Choose from six bezel/bushing mount box styles in clear (silver) or black anodized aluminum. Styles C, H, and F are shown here. See P1 Series information for Styles A, B, and G. Pushbuttons are available in nine colors. Basic switches meet MIL-PRF-8805/101 standards.
RFI shielding is included along with moisture sealing in all case styles (except sizes 1 and 4) and single or double pole momentary action. Case styles are shown in the photo to the left. Plunger is sealed against dust and moisture. Basic switch meets MIL-PRF-8805/101 standards.

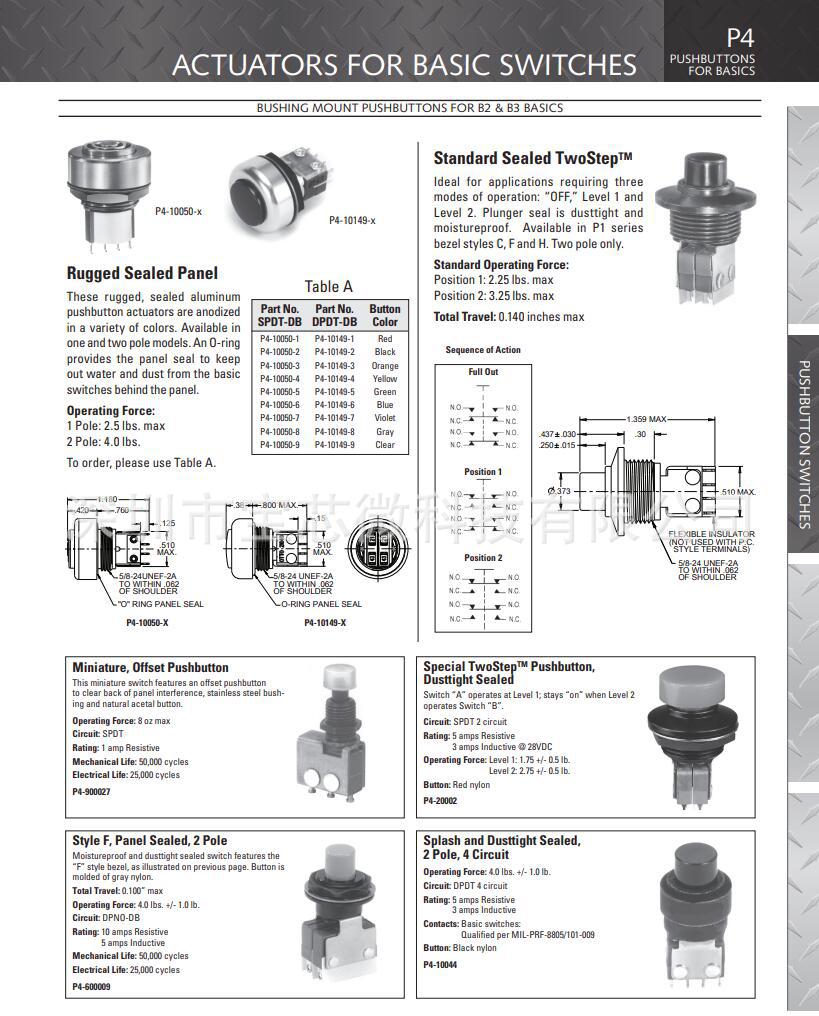

These rugged sealed aluminum push button actuators are anodized in a variety of colors. Available in single and double pole models. O-rings provide panel seal to protect basic switches behind panel from water and dust.
Ideal for applications requiring three modes of operation: "Off", "1st Stage and 2nd Stage". Plunger is sealed against dust and moisture. Available in P1 Series bezel styles C, F and H. Two pole only.
feature
Sealed and non-sealed
RFI shielding options
l Provide moisture-proof panel sealing
l Various shell styles and button colors
l Provides momentary and two-step switching action
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
Technical Information:
Similar models:
P4-10050-1 P4-10149-1 Red P4-10050-2 P4-10149-2 Black P4-10050-3 P4-10149-3 Orange P4-10050-4 P4-10149-4 Yellow P4-10050-5 P4-10149-5 Green P4-10050-6 P4-10149-6 Blue P4-10050-7 P4-10149-7 Violet P4-10050-8 P4-10149-8 Gray P4-10050-9 P4-10149-9 Clear P4-900027 P4-20002 P4-600009 P4-10044 P4-300015 P4-10155-2 P4-900003 P4-10029 P4-10073-X P4-10022 P4-10082-X P4-20003 P4-900124 P4-10090 P4-900019
