Shenzhen Baoxin Micro Technology Co., Ltd. imports and distributes a full range of products including the American OTTO P3 - sealed, momentary or push-pull push button switches, etc., guaranteeing new and original authentic products, and can provide product model pictures, parameters, technical data and official information.

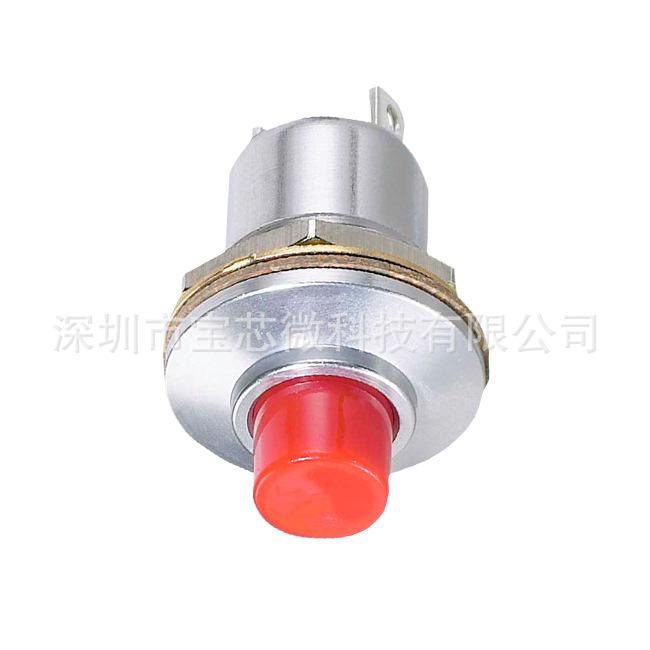

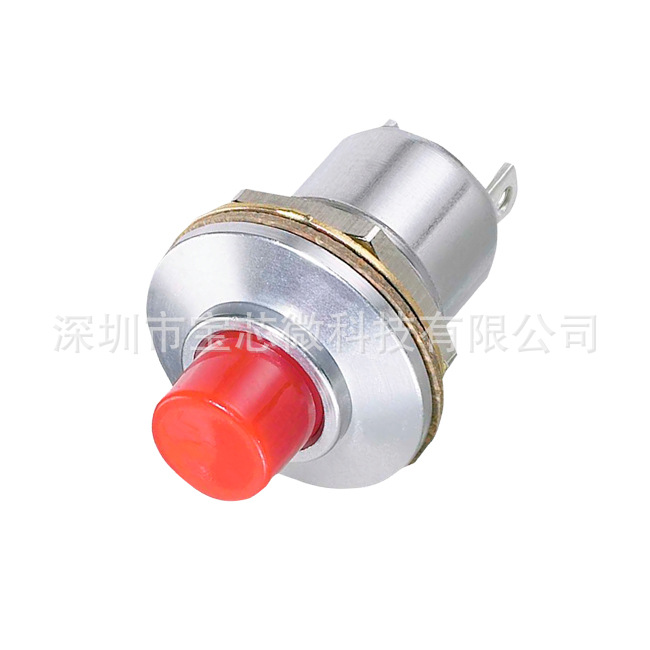

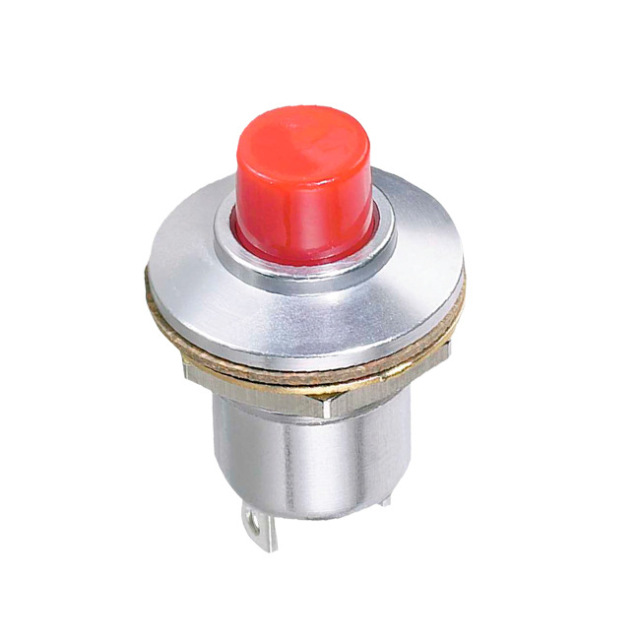

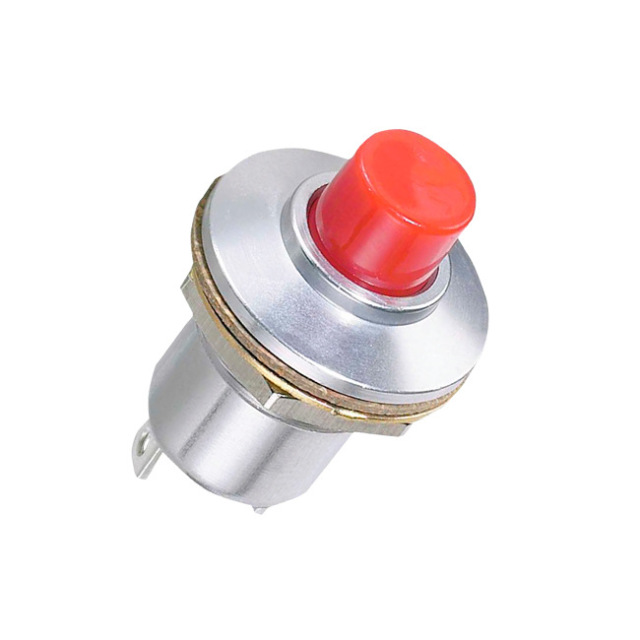

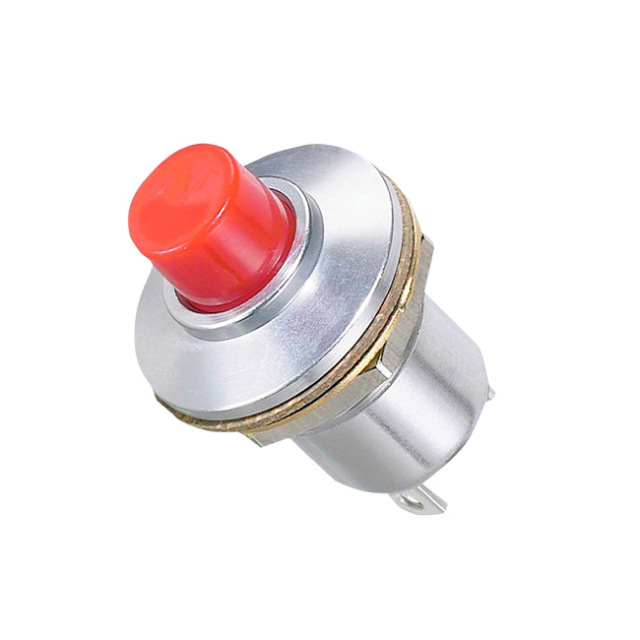

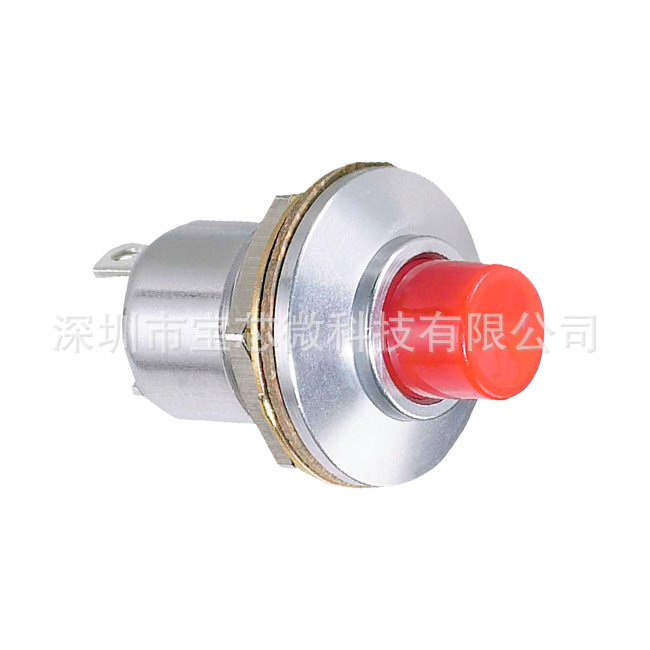

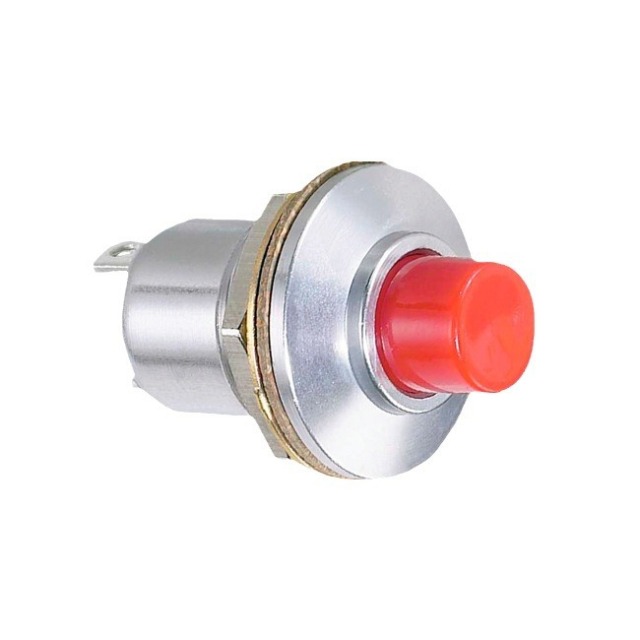

American TTO Otto Push button switch P3-72111 Product Details:
P370035 is a customized model, P3-72111 is P370035 Alternative Models
The P3-70010 has a contact resistance of less than 25 milliohms because the OTTO design has an inherent rocking action that breaks the weld and wipes the contacts clean. The P3-70010 is a commercial version of the P1 push button switch, which has a greatly reduced service life under extreme conditions in certain industrial environments. The button is sealed by a silicone sleeve on the otto patented "rolling sleeve" to provide longer service life and smoother operation over a wide temperature range. The P3 design offers unique terminal connections for increased flexibility of the moving element. Special versions can be provided with five terminals to control up to four circuits.
Make and break every time! The OTTO design has an inherent rocking action that breaks the weld and wipes the contacts clean. The P3 is a commercial version of the P1 push button switch, which has a much shorter life under the extreme conditions found in certain industrial environments. The button is sealed by a silicone sleeve running on our patented "rolling sleeve" which provides longer life and smoother operation over a wide temperature range. Epoxy protects the contacts and terminals from harsh environments and flux.
High contact force, low contact resistance and short contact bounce are the result of our snap action mechanism. These features provide excellent current carrying capability over the life of the switch. Available in an optional logic level (gold plating) configuration, the P3 is ideal for interfacing directly with computers and other solid state devices.
Simply add a "W" to the part number for a waterproof seal. Because the P3 is a double break switch, it offers a wide range of connection possibilities, longer life and greater capacity. The P3 design provides unique terminal connections for moving elements for added flexibility. Special versions are available with five terminals to control up to four circuits.
feature
l Button seal, using patented "rolling sleeve" principle
l Sealing of contact areas at buttons and terminals
Positive tactile feedback
l Multiple installation methods
l Provide engraved buttons and frames
UL certification
l 10,000 mechanical cycle life
l All versions provide IP68S waterproof rating
l Waterproof rating up to IP69K Non-push-pull version available
l RoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.

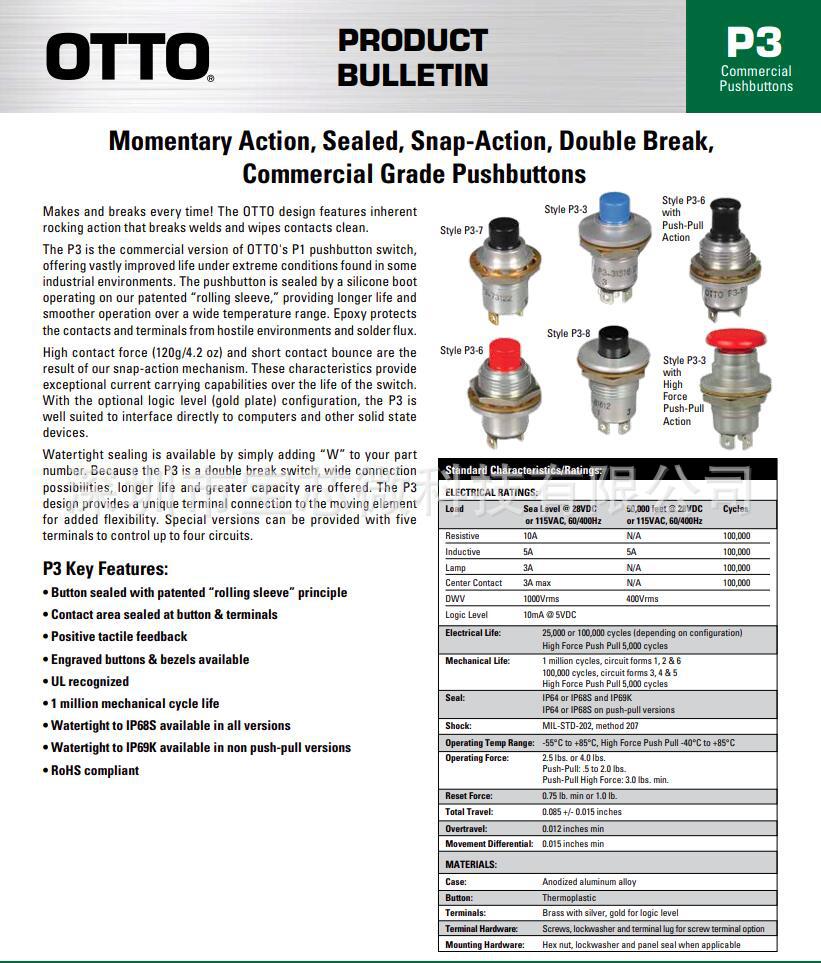

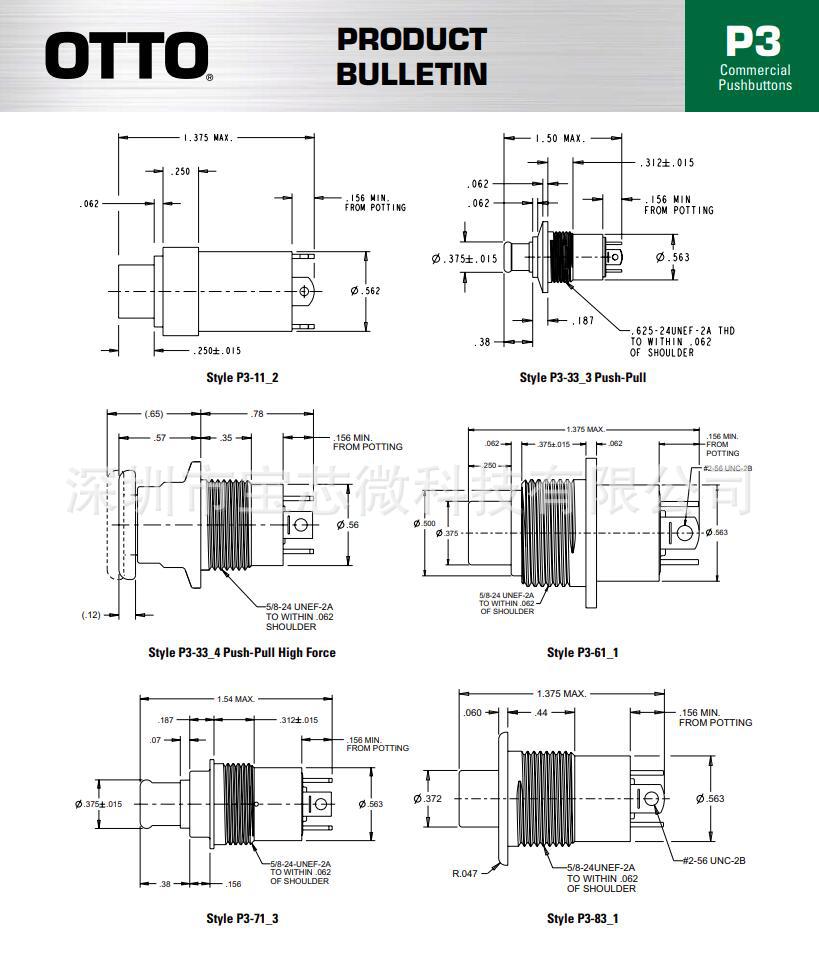

Technical Information:
Similar models:
P3-71111 P3-71112 P3-71113 P3-71114 P3-71115 P3-71116 P3-71117 P3-71118 P3-71119 P3-71121 P3-71122 P3-71123 P3-71124 P3-71125 P3-71126 P3-71127 P3-71128 P3-71129 P3-71131 P3-71132 P3-71133 P3-71134 P3-71135 P3-71136 P3-71137 P3-71138 P3-71139 P3-71211 P3-71212 P3-71213 P3-71214 P3-71215 P3-71216 P3-71217 P3-71218 P3-71219 P3-71221 P3-71222 P3-71223 P3-71224 P3-71225 P3-71226 P3-71227 P3-71228 P3-71229 P3-71231 P3-71232 P3-71233 P3-71234 P3-71235 P3-71236 P3-71237 P3-71238 P3-71239 P3-71311 P3-71312 P3-71313 P3-71314 P3-71315 P3-71316 P3-71317 P3-71318 P3-71319 P3-71321 P3-71322 P3-71323 P3-71324 P3-71325 P3-71326 P3-71327 P3-71328 P3-71329 P3-71331 P3-71332 P3-71333 P3-71334 P3-71335 P3-71336 P3-71337 P3-71338 P3-71339 P3-71411 P3-71412 P3-71413 P3-71414 P3-71415 P3-71416 P3-71417 P3-71418 P3-71419 P3-71421 P3-71422 P3-71423 P3-71424 P3-71425 P3-71426 P3-71427 P3-71428 P3-71429 P3-71431 P3-71432 P3-71433 P3-71434 P3-71435 P3-71436 P3-71437 P3-71438 P3-71439 P3-71511 P3-71512 P3-71513 P3-71514 P3-71515 P3-71516 P3-71517 P3-71518 P3-71519 P3-71521 P3-71522 P3-71523 P3-71524 P3-71525 P3-71526 P3-71527 P3-71528 P3-71529 P3-71531 P3-71532 P3-71533 P3-71534 P3-71535 P3-71536 P3-71537 P3-71538 P3-71539 P3-71611 P3-71612 P3-71613 P3-71614 P3-71615 P3-71616 P3-71617 P3-71618 P3-71619 P3-71621 P3-71622 P3-71623 P3-71624 P3-71625 P3-71626 P3-71627 P3-71628 P3-71629 P3-71631 P3-71632 P3-71633 P3-71634 P3-71635 P3-71636 P3-71637 P3-71638 P3-71639 P3-72111 P3-72112 P3-72113
