meetsensor distributes a full range of products including the American OTTO T4-4-way mini fine-tuning switch micro switch, etc., guaranteeing new and original authentic products, and can provide product model pictures, parameters, technical data and official information.

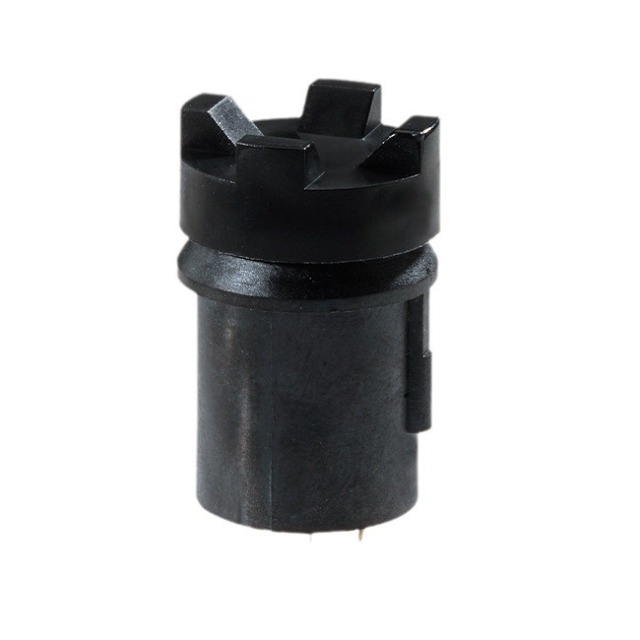

American TTO T4-4 Mini fine-tuning switch micro switch T4-CH2218 Product Details:
The T4 Miniature Basic Switch is a single pole, four throw, center break, momentary contact (with automatic return to center break). Both commercial and military grade switches are available in a variety of push button styles. Miniature basic switches are typically pressed into control handles or mounted in panels with 11/16" threaded housings. Miniature Trimmers are also available in a variety of sealing levels to suit a variety of applications.
l Provide commercial and military grades
l Various button styles
l Standard and low level switching
l Dustproof level reaches IP64, waterproof level reaches IP68S
l Press-fit or threaded housing
Tactile switches remain a favorite among design engineers because a positive detent indication circuit is transmitted to the operator. The T4-T toggle switch offers a 4-way momentary toggle action with a positive click action at the detent.
T4-T sealing options include IP64, IP68S and waterproof ratings to MIL-STD-810F; Method 506.4, Procedure 3 (drip).
The T4-T Series offers commercial and military grade switching with positive snap action, ideal for gripping applications in aircraft and off-road equipment.
feature
l 4-way instantaneous switching
l Sealed to IP64, IP68S or waterproof, in accordance with MIL-STD-810F; Method 506.4, Process 3 (Drip)
Active click operation
l Standard and logic level options with or without internal jumpers
Commercial and military grades available
l Provide a variety of button styles and colors
l RoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
Similar models:
T4 - 4-Way Mini Trim: T4-CH1111 T4-CH1112 T4-CH1118 T4-CH111N T4-CH1121 T4-CH1122 T4-CH1128 T4-CH112N T4-CH1211 T4-CH1212 T4-CH1218 T4-CH121N T4-CH1221 T4-CH1222 T4-CH1228 T4-CH122N T4-CH1311 T4-CH1312 T4-CH1318 T4-CH131N T4-CH1321 T4-CH1322 T4-CH1328 T4-CH132N T4-CH2111 T4-CH2112 T4-CH2118 T4-CH211N T4-CH2121 T4-CH2122 T4-CH2128 T4-CH212N T4-CH2211 T4-CH2212 T4-CH2218 T4-CH221N T4-CH2221 T4-CH2222 T4-CH2228 T4-CH222N T4-CH2311 T4-CH2312 T4-CH2318 T4-CH231N T4-CH2321 T4-CH2322 T4-CH2328 T4-CH232N
