meetsensor distributes a full range of products including the American OTTO T4-4-way mini fine-tuning switch, micro switch, etc., guaranteeing new, original and authentic products, and can provide product model pictures, parameters, technical data and official information.

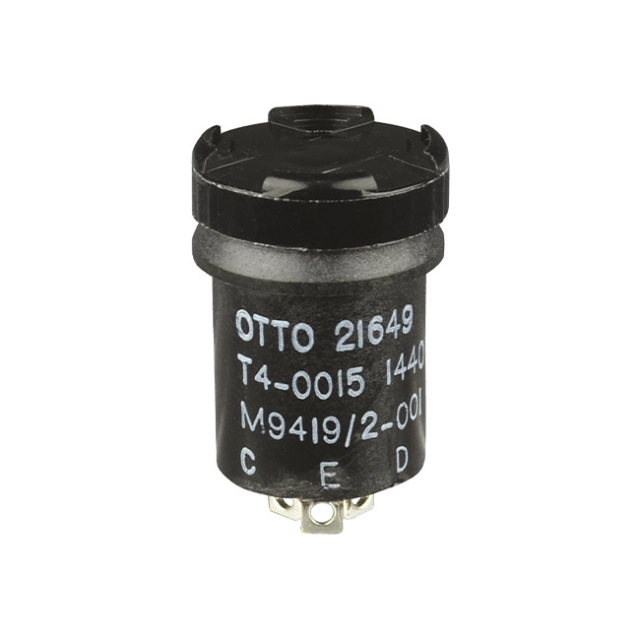

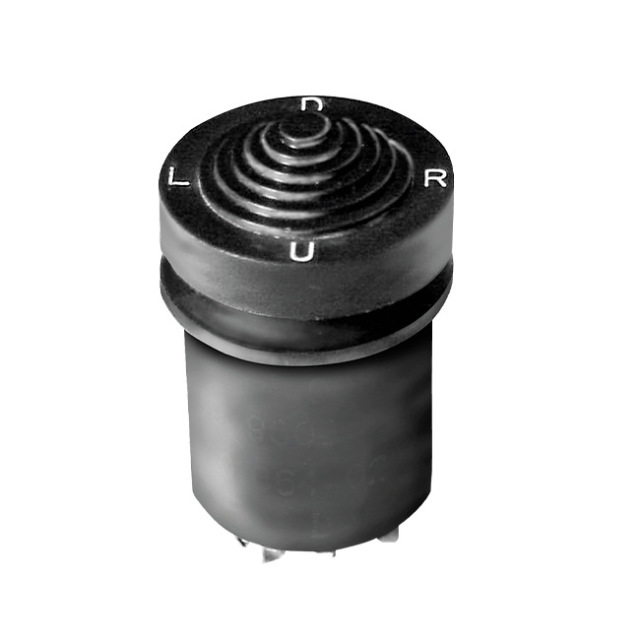

American TTO Otto T4-4 Mini fine-tuning switch micro switch T4-CD2218 Product Details:
The T4 Miniature Basic Switch is a single pole, four throw, center break, momentary contact (with automatic return to center break). Both commercial and military grade switches are available in a variety of push button styles. Miniature basic switches are typically pressed into control handles or mounted in panels with 11/16" threaded housings. Miniature Trimmers are also available in a variety of sealing levels to suit a variety of applications.
l Provide commercial and military grades
l Various button styles
l Standard and low level switching
l Dustproof level reaches IP64, waterproof level reaches IP68S
l Press-fit or threaded housing
Tactile switches remain a favorite among design engineers because a positive detent indication circuit is transmitted to the operator. The T4-T toggle switch offers a 4-way momentary toggle action with a positive click action at the detent.
T4-T sealing options include IP64, IP68S and waterproof ratings to MIL-STD-810F; Method 506.4, Procedure 3 (drip).
The T4-T Series offers commercial and military grade switching with positive snap action, ideal for gripping applications in aircraft and off-road equipment.
feature
l 4-way instantaneous switching
l Sealed to IP64, IP68S or waterproof, in accordance with MIL-STD-810F; Method 506.4, Process 3 (Drip)
Active click operation
l Standard and logic level options with or without internal jumpers
Commercial and military grades available
l Provide a variety of button styles and colors
l RoHS compliant
Founded in 1961, OTTO Engineering is located in Carpentersville, Illinois, USA. It has been designing, developing and manufacturing control products and communication accessories for 60 years. Products are specially designed to meet customers' demanding application requirements.
OTTO is a vertically integrated manufacturer with in-house injection molding, stamping, CNC machining, cable assembly and cable overmolding capabilities. It also has strong mechanical, electrical and RF design engineering capabilities, test laboratories and computer-controlled production line testing capabilities.
OTTO by OTTO Controls and OTTO Communications Both divisions sell its products.
control
Our switches and control handles are at work every day in some of the most demanding applications including heavy equipment, aerospace, marine, medical, communications and other demanding markets.
Communications
OTTO Communications specializes in accessories for the two-way radio market including surveillance kits, wireless accessories, light and heavy duty headsets, speaker microphones, tactical, fire and hazmat communications equipment.
Similar models:
T4 - 4-Way Mini Trim: T4-CD1111 T4-CD1112 T4-CD1118 T4-CD111N T4-CD1121 T4-CD1122 T4-CD1128 T4-CD112N T4-CD1211 T4-CD1212 T4-CD1218 T4-CD121N T4-CD1221 T4-CD1222 T4-CD1228 T4-CD122N T4-CD1311 T4-CD1312 T4-CD1318 T4-CD131N T4-CD1321 T4-CD1322 T4-CD1328 T4-CD132N T4-CD2111 T4-CD2112 T4-CD2118 T4-CD211N T4-CD2121 T4-CD2122 T4-CD2128 T4-CD212N T4-CD2211 T4-CD2212 T4-CD2218 T4-CD221N T4-CD2221 T4-CD2222 T4-CD2228 T4-CD222N T4-CD2311 T4-CD2312 T4-CD2318 T4-CD231N T4-CD2321 T4-CD2322 T4-CD2328 T4-CD232N
