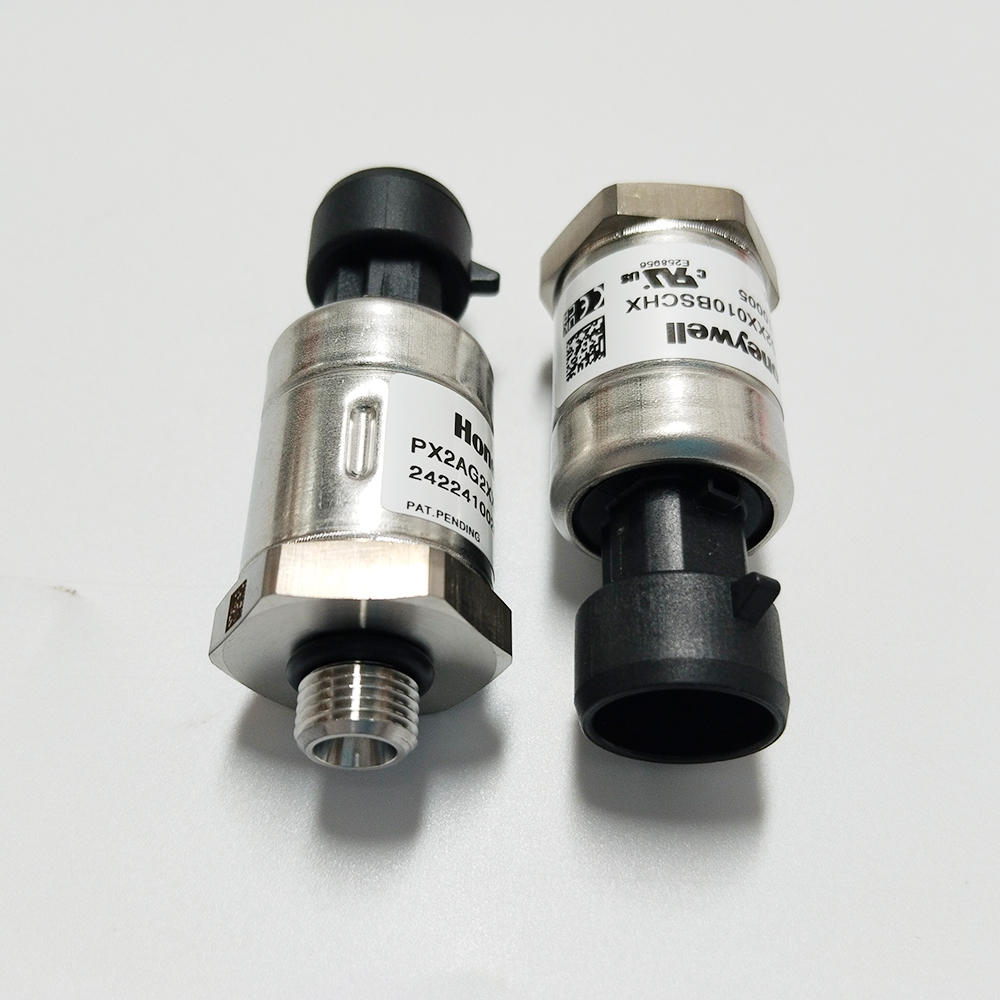

In high-temperature industrial environments, the selection of pressure sensors directly determines the reliability, accuracy, and service life of the measurement system. Unlike ambient-temperature applications, high-temperature operating conditions involve multiple challenges including material thermal expansion, signal drift, and changes in medium properties, requiring a systematic evaluation of various technical parameters. The following are the core considerations for selecting pressure sensors in high-temperature scenarios.
I. Defining Temperature Boundary Conditions
The primary task in sensor selection is to define the actual temperature environment, which encompasses three levels of temperature parameters:
1. Process Temperature
This refers to the temperature of the measured fluid or gas itself. It is the fundamental parameter that determines the material selection for the sensor probe and wetted components. For example, measuring gas pressure at 800°C presents distinctly different requirements compared to measuring steam pressure at 300°C.
2. Ambient Temperature
The external environmental temperature where the sensor's electronics enclosure is located. High-temperature workshops, installations near heat sources, or outdoor exposure during summer months can cause ambient temperatures to exceed the tolerance limits of electronic components (typically 85°C or 125°C). When ambient temperature exceeds specifications, a split-type design must be employed, isolating the sensing element from the electronic processing unit via high-temperature capillary tubing or cooling extensions.
3. Temperature Gradients and Fluctuations
Instantaneous thermal shocks and cyclic temperature variations can lead to material fatigue. During selection, attention should be paid to the rate of temperature change (°C/min) and whether thermal cycling conditions exist, as these factors relate to the long-term stability design of the sensor.
II. Sensing Element Materials and Structural Design
1. Diaphragm Material Selection
The pressure-sensing diaphragm is the core component that directly contacts the high-temperature medium:
316L Stainless Steel: Suitable for general corrosive media below 400°C
Hastelloy C-276: Resistant to strong corrosion, with operating temperatures up to 550°C
Inconel 718/625: Nickel-based superalloys capable of withstanding temperatures above 650°C, with excellent creep resistance
Sapphire/Ceramic Diaphragms: Used for extreme high temperatures (>1000°C) or strongly oxidizing environments, though with greater brittleness
2. Fill Media and Isolation Design
High temperatures degrade the pressure transmission performance of conventional silicone oil fills (silicone oil decomposes above 300°C). High-temperature sensors typically employ:
High-temperature silicone oil (maximum 350°C)
Molten salt or liquid metal fills (for higher temperature applications)
Direct-mount designs without fill media (pressure transmission via mechanical linkage, suitable for >500°C)
3. Heat Dissipation and Cooling Structures
For scenarios where the medium temperature is extremely high but the electronics enclosure must operate at ambient temperature, the following are employed:
Cooling Extension: Natural heat dissipation achieved by increasing the thermal conduction path length; each 100mm of extension typically reduces temperature by approximately 40-60°C
Water-cooled or Air-cooled Jackets: Active cooling methods for extreme conditions above 800°C
Cooling Fins: Increased heat dissipation surface area for space-constrained installations
III. Signal Output and Electrical Isolation
1. Output Signal Types
High-temperature environments are often accompanied by strong electromagnetic interference. Analog signals (4-20mA) offer superior anti-interference capability compared to voltage signals. For long-distance transmission or high-precision requirements, digital outputs (HART, Modbus, CAN bus) are preferable, though ensuring the electronics enclosure temperature remains within allowable limits is essential.
2. Split-type vs. Integrated Architecture
When ambient temperatures exceed 85°C, integrated sensor circuit boards will experience accelerated aging. Split-type designs separate the sensing head (withstand temperatures >400°C) from the electronic transmitter (located in ambient temperature zones), connected via high-temperature cables or fiber optics. This is a critical solution for ensuring electrical reliability in high-temperature applications.
3. Intrinsic Safety and Explosion-proof Requirements
High-temperature scenarios in petrochemical and similar industries often involve flammable and explosive media. Appropriate explosion-proof certifications (Ex d, Ex ia, etc.) must be selected based on hazardous area classifications (Zone 0/1/2), ensuring that the explosion-proof enclosure's heat dissipation design does not cause surface temperatures to exceed safe limits.
IV. Accuracy and Temperature Compensation
1. Temperature Coefficient
The accuracy of high-temperature sensors cannot be evaluated solely based on room-temperature calibration values; comprehensive error across the full temperature range must be considered. Premium high-temperature sensors provide:
Zero temperature drift: ≤0.02% FS/°C
Sensitivity temperature drift: ≤0.05% FS/°C
Total error across full temperature range: ≤0.5% FS (covering -40°C to +400°C)
2. Digital Temperature Compensation Technology
Modern high-temperature sensors incorporate multi-point temperature calibration data, with real-time temperature drift compensation via DSP or ASIC chips. During selection, confirmation should be obtained that the compensation temperature range covers actual operating conditions, rather than merely compensating near room temperature.
3. Long-term Stability
High temperatures accelerate material aging. The following should be considered:
Annual drift specifications (typically requiring <0.1% FS/year)
Whether field re-calibration functionality is provided
Whether the diaphragm incorporates stress relaxation design
V. Process Connection and Installation Methods
1. Connection Specifications
For high-temperature applications, flange connections (such as ANSI B16.5, DIN standards) are preferred over threaded connections because:
Flange face sealing is more reliable, preventing thread galling at high temperatures
Easier disassembly and maintenance, reducing downtime
Compatible with extension necks or condensation loops
2. Installation Orientation
When measuring high-temperature gases or steam, impulse lines should be equipped with condensation loops or condensate pots to prevent high-temperature media from directly contacting the sensor. For molten metals or high-temperature molten salts, insertion-type thermowell designs are required to ensure the sensor body does not directly contact superheated media.
3. Thermal Isolation Measures
Adding thermal insulation gaskets or ceramic isolation components between the sensor and high-temperature piping can effectively block heat conduction paths, protecting electronic components.
VI. Special Medium Adaptability
1. High-Temperature Corrosive Media
For acid gases, sulfur-containing oil and gas, and similar applications, in addition to selecting corrosion-resistant diaphragms, the following must be considered:
Corrosion rates at high temperatures are typically several times higher than at ambient temperature
Whether duplex stainless steel, Monel alloy, or tantalum diaphragms are required
Periodic diaphragm thickness monitoring functionality (available in some high-end sensors)
2. High-Temperature Melt Pressure
Industries such as plastic extrusion and chemical fiber spinning require pressure measurement of melts at 300-400°C. Such applications demand:
High diaphragm hardness (to prevent melt adhesion)
Flush diaphragm design (to avoid material stagnation and degradation)
Integrated thermocouple (simultaneous temperature and pressure measurement)
3. High-Temperature Steam and Gas Turbines
Gas turbine combustion chamber pressure measurements can exceed 600°C, requiring:
Water-cooled impulse lines
Special high-temperature alloys (such as Rene 41)
Dynamic pressure response capability (for combustion instability monitoring)
VII. Supplier and Certification Evaluation
1. Industry Application Validation
Priority should be given to suppliers with proven track records in similar operating conditions. The reliability of high-temperature sensors is highly dependent on process expertise; laboratory parameters may differ significantly from actual field performance.
2. Certification Systems
Pattern Approval for Measuring Instruments (CPA)
SIL Safety Integrity Level (for safety interlock circuits)
NACE MR0175 (material certification for sour service environments)
Classification Society Certifications (for marine high-temperature systems)
3. Total Cost of Ownership
The initial procurement cost of high-temperature sensors may be several times higher than ambient-temperature models, but comprehensive evaluation should include:
Mean Time Between Failures (MTBF)
Maintenance cycles and spare parts costs
Production losses due to unplanned downtime
VIII. Recommended Typical Selection Process
Process Definition: Accurately document medium temperature, pressure range, chemical properties, and installation space
Temperature Decomposition: Distinguish between process temperature and ambient temperature; determine whether split-type design is required
Material Screening: Select diaphragm and wetted materials based on corrosion resistance and temperature
Accuracy Matching: Define the precision level required for process control, with margin for temperature drift
Signal and Electrical: Determine output type, power supply method, and explosion-proof requirements
Structural Confirmation: Select process connection type, cooling method, and installation orientation
Supplier Evaluation: Review application cases, certification qualifications, and after-sales service network
Prototype Validation: For critical applications, recommend field trials with small quantities before bulk procurement
The selection of high-temperature pressure sensors is a systematic engineering task that cannot be simply extrapolated from ambient-temperature parameters. The core lies in thermal management—from the medium to the diaphragm, from the diaphragm to the electronics enclosure, and from the electronics enclosure to the environment, each level of heat transfer path requires precise control. Only through synergistic optimization across the four dimensions of temperature boundaries, materials science, signal processing, and installation technology can long-term stable operation of high-temperature pressure measurement systems be ensured, providing reliable data support for process safety and efficiency.
